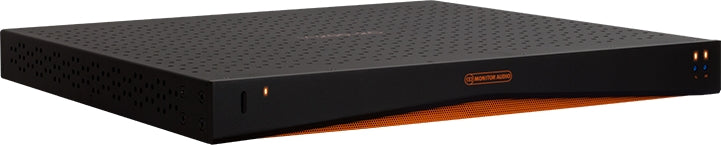

Monitor Audio IA200-2C Custom Installation 200W Stereo Amplifier with Connect IP
$1,759
Description
The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. A ‘Connect’ amplifier, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
Product Video:
A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.
Specifications:
| 'Connect' IP Control | Yes |
| Channel Number | 2 (1 Stereo Pair) |
| Power (W / Channel) | 4 Ohms | 200 W |
| Power (W / Channel) | 8 Ohms | 150 W |
| Power (W / Channel) | Bridge (8 Ohms) | 470 W (1 ch) |
| Power (W / Channel) | 70 V | N/A |
| Input Impedance | 20 K Ohms |
| Output Impedance (Loop RCA) | 600 Ohms |
| Input Sensitivity | 100 mV / 1 W, 1230 mV – Full Power |
| Maximum Input Voltage | 2.9 V |
| Signal to Noise (SN:R) | -100 dB (20 Hz – 20 kHz) |
| Frequency Response | 5 Hz – 50 kHz |
| Total Harmonic Distortion THD+N @ 1 kHz | 0.03% |
| Rack Height | 1U |
| Dimensions (Excluding Feet (H x W x D)) | 42.4 x 438 x 427 mm (1 11/16 x 17 1/4 x 16 13/16") |
| Dimensions (Including Feet (H x W x D)) | 52.8 x 438 x 427 mm (2 1/16 x 17 1/4 x 16 13/16") |
| Width (Including Rack Brackets) | 482 mm (19") |
| IP Communication | TCP/IP (RJ-45 10/100 BaseT) |
| Mains Operating Voltage | 100 – 120 V @ 60 Hz / 220 – 240 V @ 50 Hz |
| Fuse Type | 5 A (T5AL ~ 250 VAC) |
| Standby Power Consumption | <0.5 W (Green Mode) |
| Networked Standby Power Consumption | <2 W |
| Weight | 5.3 kg (11 lb 10 oz) |
