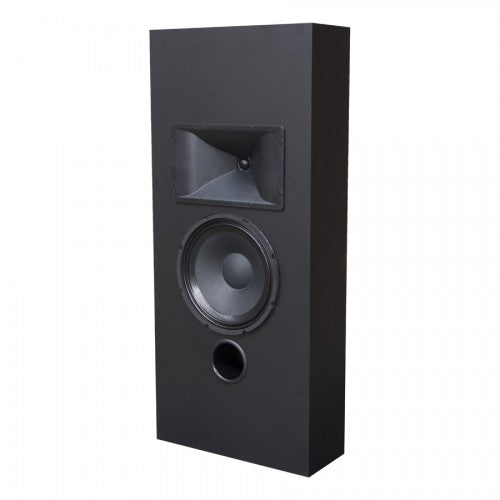

Krix Megaphonix Flat On-Wall Theatre Surround Speaker EACH

MEGAPHONIX FLAT

ON WALL

**Speakers are sold individually - Please get in touch with us to work our your requirements**

Impact and dynamics for a real home cinema experience

High sensitivity, very low distortion

Grille version available

Mounted on wall as fronts or surrounds, the Megaphonix Flat delivers high quality dialogue and effects to bring you the movie soundtrack just as the director intended.

EXPERIENCE DYNAMICS

The Megaphonix Flat speaker is designed specifically for on wall use in a dedicated home cinema, using high power handling and high sensitivity drivers. Delivering all the impact and dynamics you need for a real home cinema experience without the need for expensive AV equipment, the Megaphonix Flat will complete your cinema experience.

The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband.  The paper cone and surround of the bass driver have been developed to provide the smoothest possible response.

The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire bandwidth. The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.

All contained in a slim-lined 162mm deep package, ensuring space behind the screen is kept to a minimum, the Megaphonix Flat enclosure is braced and critically damped to improve bass extension. It also comes with a black material grille and rear key hook mounts for easy installation.

For those looking for space saving solutions, the Megaphonix Flat is the on wall member of a five-speaker family, allowing you to combine it with main or surround speakers for a connected, clear and smooth sound experience.

For the ultimate cinema experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
40Hz-20kHz in room response

Power Handling
50-250 Watts RMS recommended amplifier power

Sensitivity
95dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
2-way

Enclosure Type
Bass reflex, front vented

Dimensions
885mm high x 390mm wide x 162mm deep

Low Frequency Driver
Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion

High Frequency Driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide

Crossover Point
1.8kHz

Input Terminals
Gold plated binding posts

Weight
15kg each
