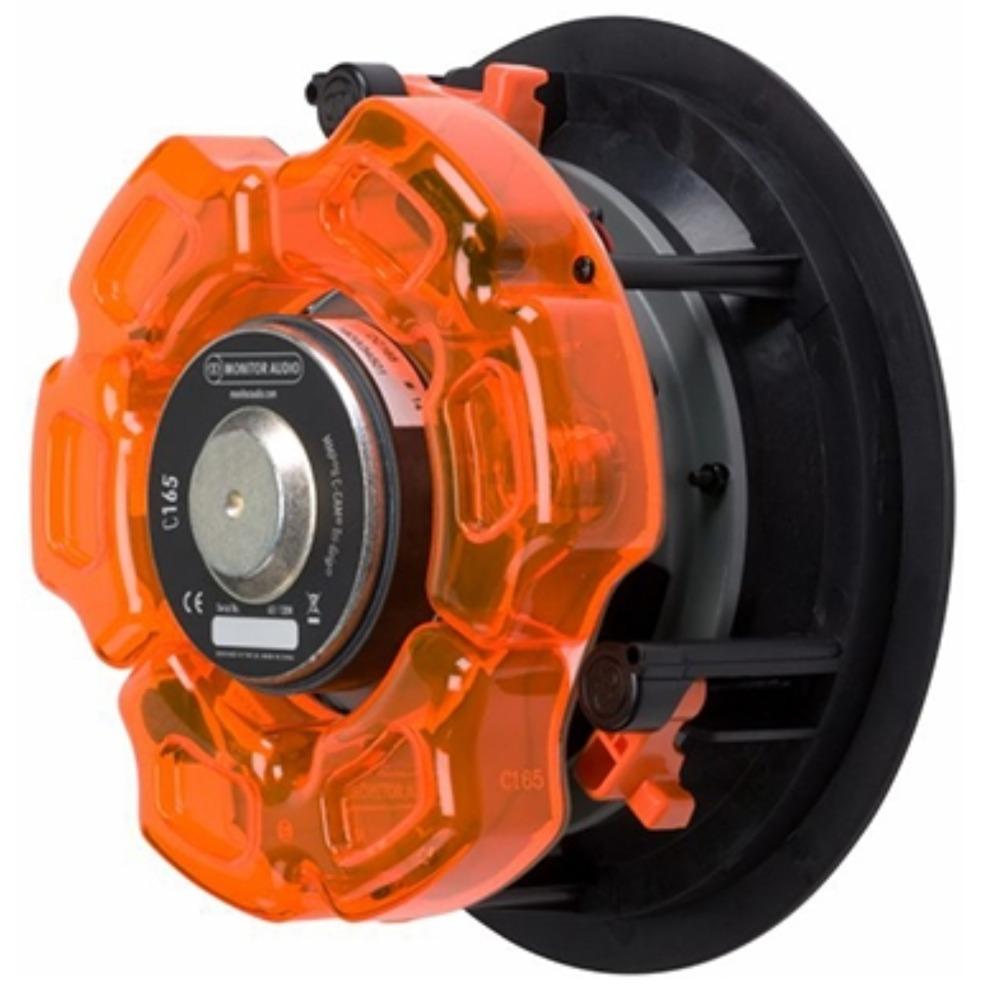

Incorporating a 6 1/2 inch MMP-II bass driver with Monitor Audio’s signature C-CAM Gold Dome Tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Frequency Response
60 Hz – 25 kHz
Sensitivity (1W@1M)
88.5 dB
Power Handling (RMS)
65 W
Recommended Amplifier Requirements
20 – 65 W
Drive Unit Complement
6 1/2" MMP-II cone bass driver
1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
120 mm (43/4")
Mounting Depth
116 mm (49/16")
Cut-Out Hole Diameter
211 mm (81/4")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
1.92 kg (4 lb 4 oz)
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
Back Box
CCBOX-R / CMBOX-R
