dCS Vivaldi Upsampler Plus
$36,995
By dCS
This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description
Our digital-to-digital converter acts as the hub of your system, accessing music from any source and converting audio from its native sample rate to high-resolution DSD, DXD or PCM, providing a complete listening experience with astonishing levels of detail and depth.
Upsampler Key Features
- Utilises the latest generation dCS Digital Processing Platform for state-of-the-art measured performance and unrivalled fidelity
- Designed for maximum flexibility, both input and output configuration can be optimised for systems with various digital sources
- Comprehensive clocking architecture to minimise jitter
- High quality streaming from TIDAL, Qobuz, Deezer and internet radio via the dCS Mosaic Control app
- Roon Ready, AirPlay, Spotify Connect and UPnP compatible
- USB, AES, Dual AES and S/PDIF digital audio inputs
- Auto clocking mode, Save/Restore settings, Universal Master Mode, the hiding of inactive inputs, DXD Lock and DSD Feed-through modes improve ease-of-use
- Asynchronous Network and USB interfaces do not use the computer’s jittery clock
- Improved power supplies give lower running temperature and superior tolerance to AC supply variations
- Multi-stage regulation ensures sensitive clock and PLL circuitry is unaffected by digital interference
- Aerospace-grade machined aluminium chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration
Specifications:
| Type | Digital-to-Digital Converter |

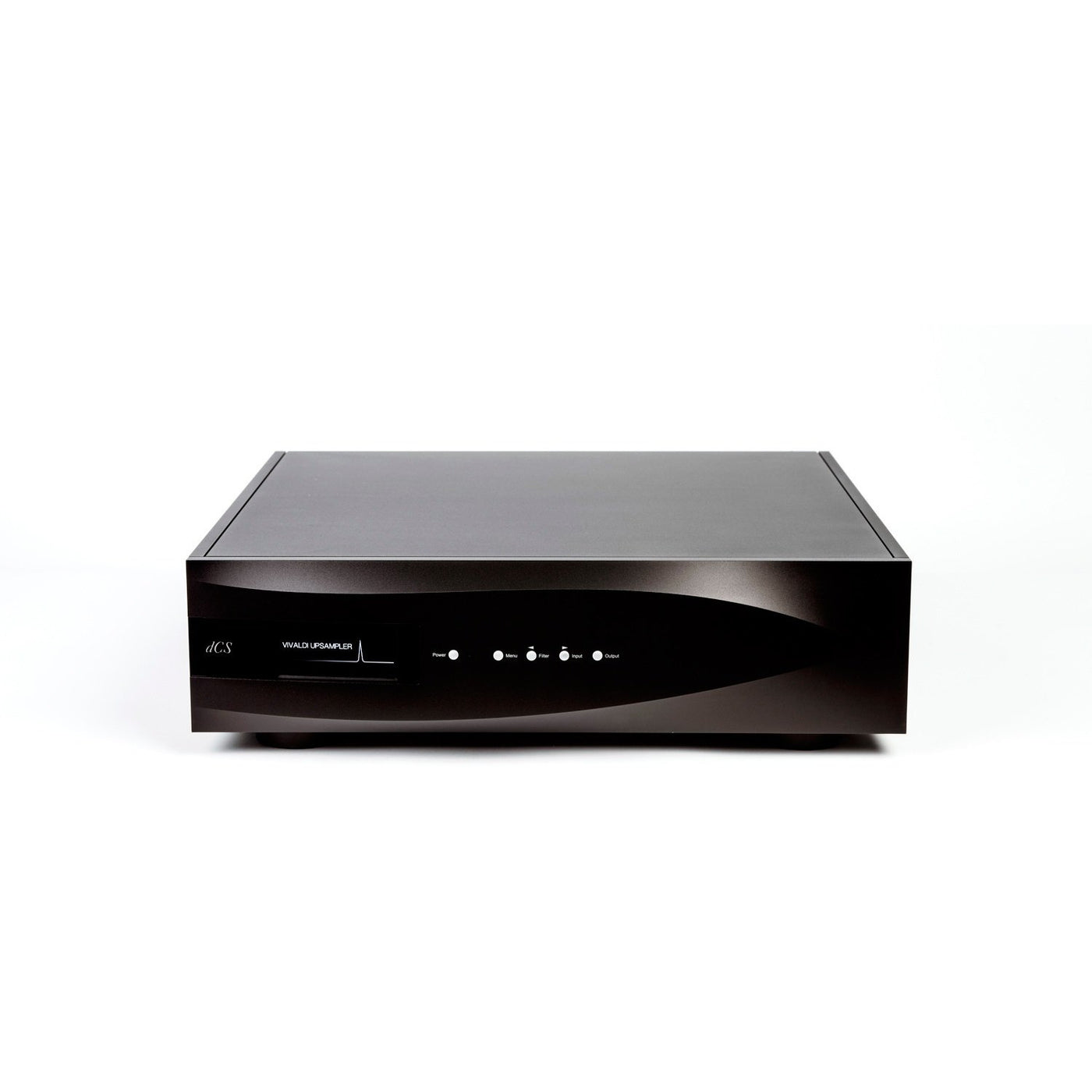

| Chassis Options | Silver or Black |
| Dimensions | 444mm/17.5” x 435mm/17.2” x 125mm/5.0” (Allow extra depth for cable connectors and airflow) |
| Weight | 14.2kg / 31.3lbs |

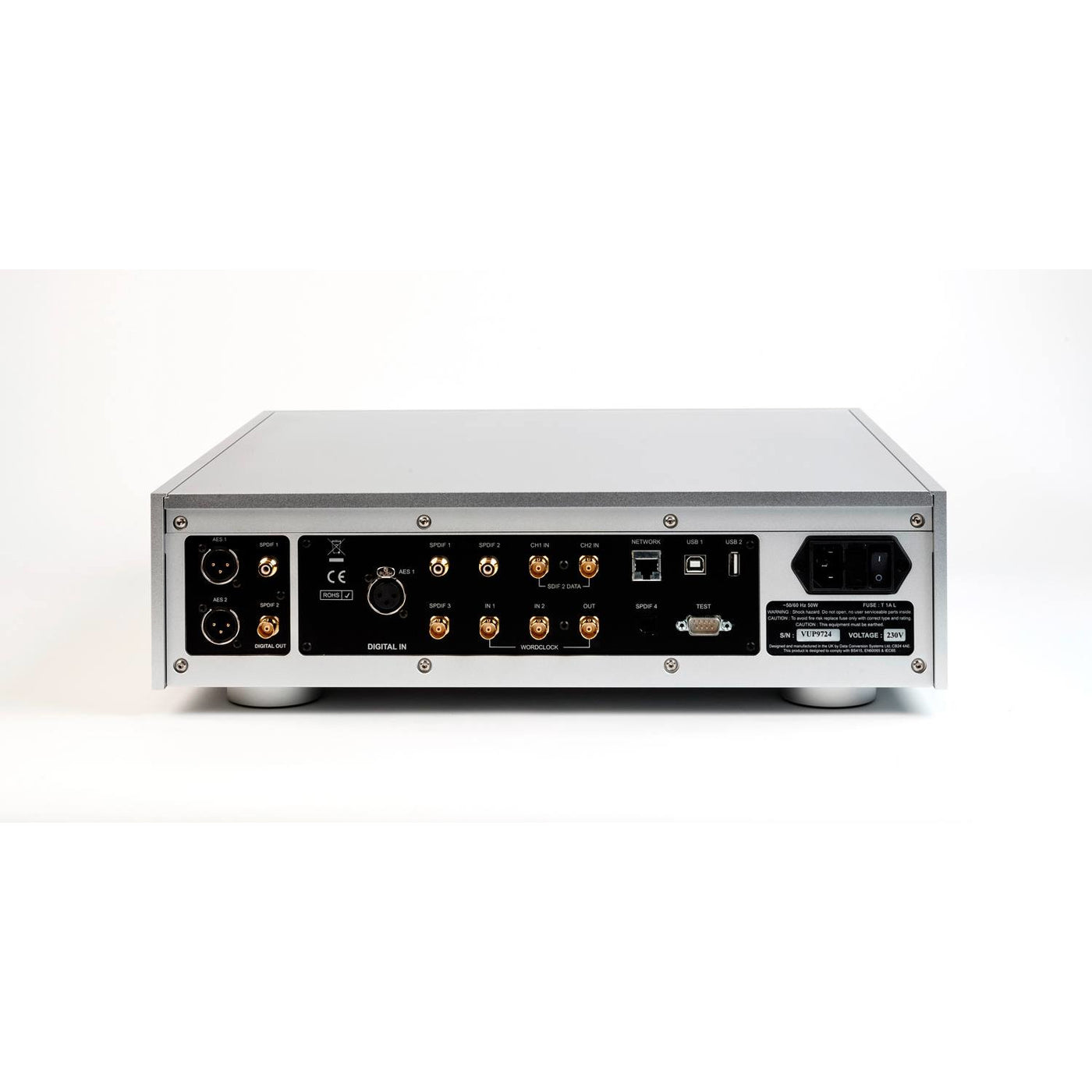

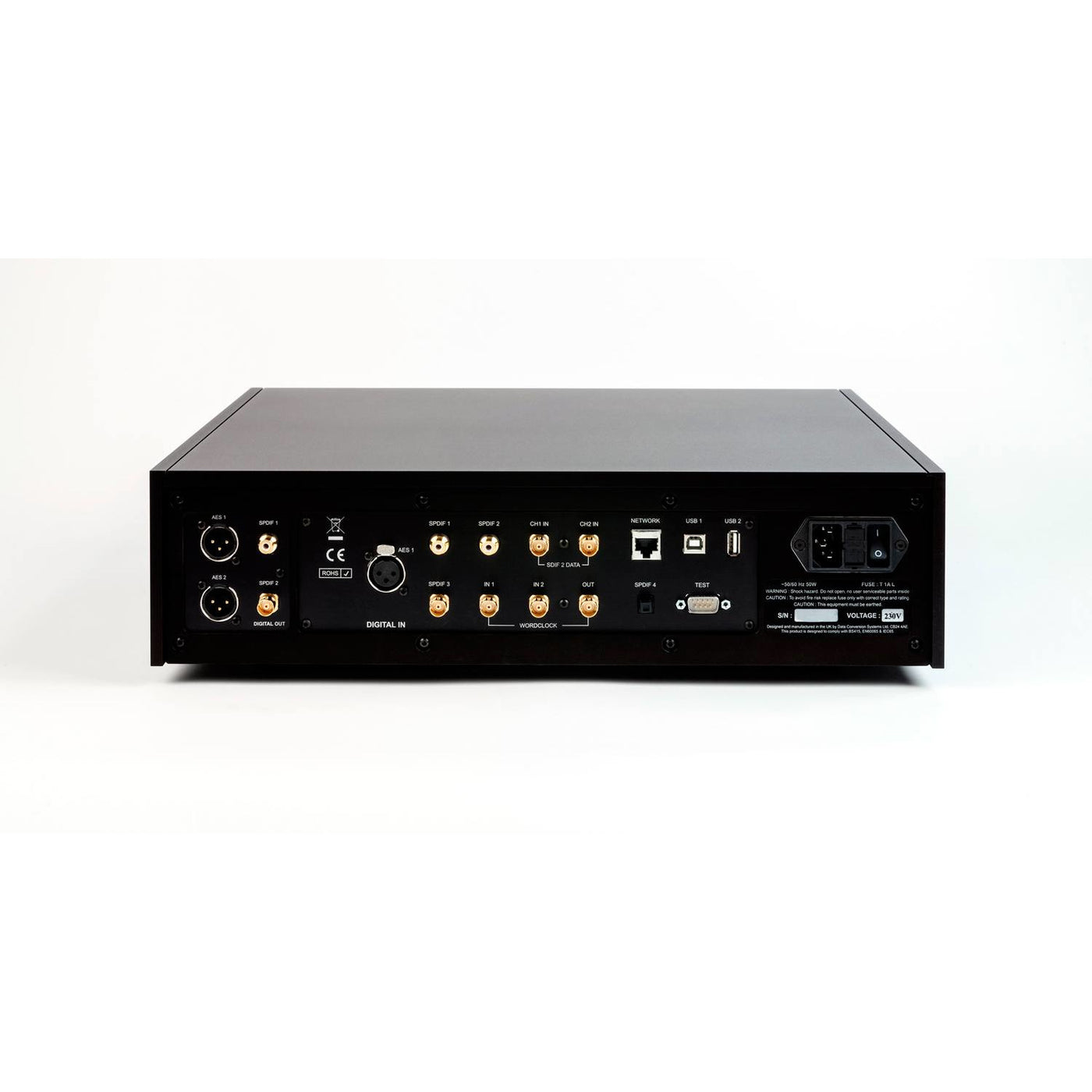

| Inputs | Ethernet (RJ45), USB 2.0 (B-type), USB On-The-Go (A-type), AES/EBU (XLR), SPDIF (RCA, BNC, TOSLINK) |
| Supported Input Formats | PCM: 24-bit 44.1 – 384kS/s, DSD: DSD/64 & DSD128 in DoP or DFF/DSF format |
| Outputs | 2 x AES (XLR), 1 x Dual AES (XLR), 2 x SPDIF (RCA, BNC) |
| Supported Output Formats | PCM: 24-bit 32 – 384kS/s, DSD: DSD/64 & DSD/128 in DoP format |
| Conversion | Converts input data to 24-bit PCM (32 - 384kS/s) or DSD (DSD/64 or DSD/128) |
| Word Clock Inputs | 2 x BNC connectors (44.1, 48, 88.2, 96, 176.4, 192kHz) |
| Word Clock Output | 1 x BNC connector (Outputs Word Clock at output data rate or 44.1kHz for DSD) |
| Signal-to-Noise Ratio | Better than -100dB0 @ 20Hz-20kHz for Fs>32kS/s, 20Hz-14kHz for 32kS/s |
| Filters | Anti-alias filters for 12 popular conversions |
| Software Updates | Downloaded via the Mosaic App |
| Control | dCS Mosaic App, dCS Universal Remote, RS232 |
| Power Supply | Factory set for 100, 115, 220 or 230V AC, 50-60Hz |
| Power Consumption | 15 Watts typical / 18 Watts maximum |
