Future Automation BL BOX LIFT ALL PURPOSE LIFT

$6,699
By Future Automation
This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

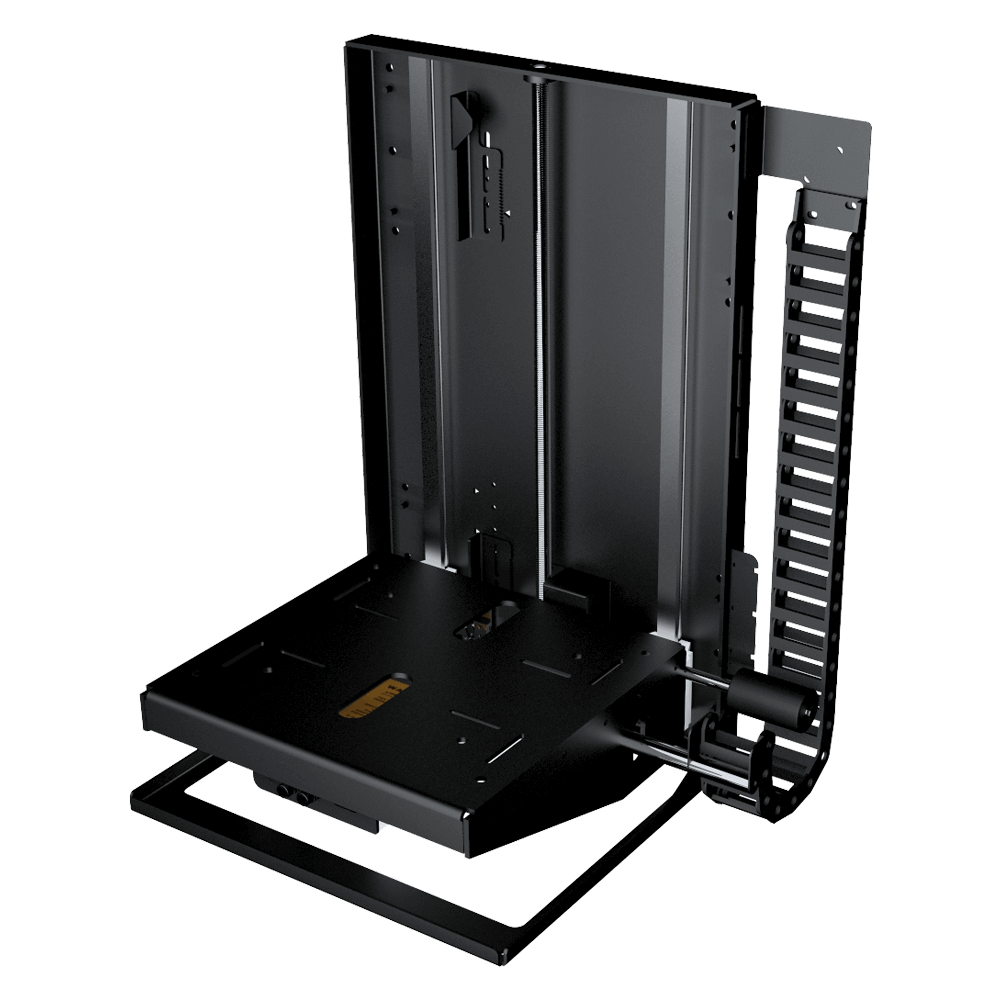

The Box Lift is a versatile lifting platform that rises vertically out of furniture, floors, or cabinets. Available in one footprint size with a range of lifting heights, it offers the installer absolute freedom and the ability to integrate unique functionality.

Ideal for projectors, the Box Lift is also ideally suited for more custom projects and non-AV items such as mini-bars and safes.

  • Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
  • In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
  • Supplied as a fully built unit ready to be integrated with no self-assembly required



VERSATILE

CUSTOM POTENTIAL

Available in standard height increments or in a bespoke height, ideal for retrofitting into existing spaces or as a creative solution to utilise potentially wasted space, such as corner units in a kitchen cabinet. All Future Automation automated mechanisms are supplied with the following control options:

  • IR - Using supplied Future Automation infrared remote control
  • Contact Closure – Using RJ45 port on the supplied control board
  • RS232 - Using RJ11/25 port on supplied control board



Control Board

Specifications:

PRODUCT CODE BL-H420 BL-H540 BL-H660 BL-CUSTOM
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)		 RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)		 RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)		 RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)
DECIBEL RATING 52DB 52DB 52DB 52DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 CUSTOM FINISH
MAX WEIGHT 40KG (88LBS) 40KG (88LBS) 40KG (88LBS) REQUIRED WEIGHT
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED
TRAVEL DISTANCE 315MM 435MM 555MM REQUIRED TRAVEL DISTANCE
