Future Automation LSM TV LIFT
Description
LSM
TV LIFT 42"-79"

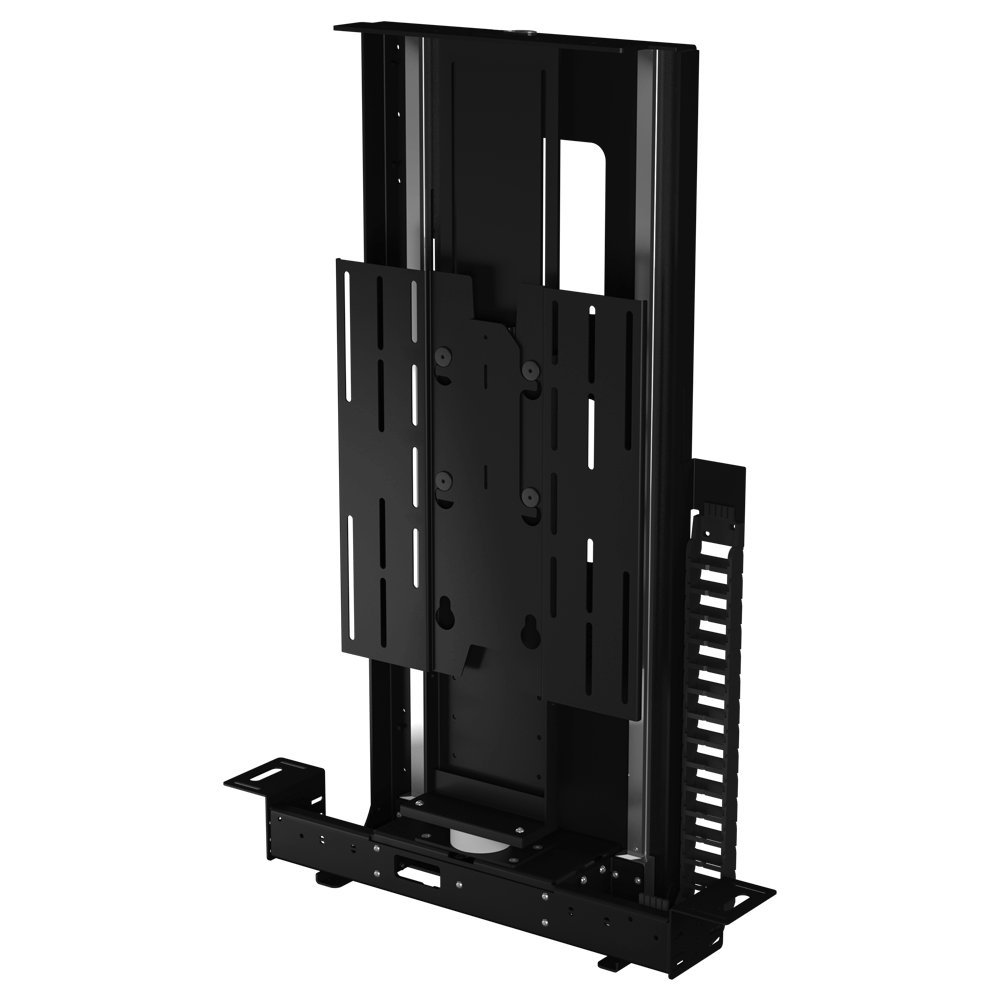

The LSM motorised TV lift mechanism is ideal for concealing screens from approximately 42" to 79" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.
CONCEAL
REVEAL
The higher lifting capacity of the Lift System Medium makes it perfect for living room or media room applications, where larger screens are typically used. This additional weight capacity as well as direct compatibility with the USM (Universal Speaker Mount) also allows for easy soundbar or speaker mounting.
Supplied with IR, Contact Closure and RS232 control options as standard, the entire Lift System Range can be easily installed as standalone units, or easily integrated into the modern smart home. Featuring a robust marine suitable lifting beam, the LSM can be also be used indoors on boats or yachts with no need for additional hardware.
| PRODUCT CODE | LSM4 | LSM5 | LSM6 | LSM7 | LSM8 |
|---|---|---|---|---|---|
| CONTROL BOX DIMENSIONS | 150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
| CONTROL OPTIONS | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) |
| DECIBEL RATING | 52DB | 52DB | 52DB | 52DB | 52DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| INTERNAL CABINET HEIGHT | 820MM (32.28") | 880MM (34.64") | 950MM (37.40") | 1060MM (41.73") | 1270MM (50") |
| LID TYPE | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID SUPPLIED |
| MAX LIFTING CAPACITY | 50KG (110LBS) | 50KG (110LBS) | 50KG (110LBS) | 50KG (110LBS) | 80KG (176LBS) |
| MAX LIFTING CAPACITY (MARINE) | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) | 40KG (88LBS) |
| MAX SCREEN HEIGHT | 675MM (26.67") | 735MM (28.93") | 805MM (31.69") | 915MM (36.02") | 1025MM (40.3") |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| OUTPUT POWER SUPPLY | YES(12V) | YES(12V) | YES(12V) | YES(12V) | YES(12V) |
| POWER CONSUMPTION | 250W - 500W | 250W - 500W | 250W - 500W | 250W - 500W | 250W - 500W |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| SCREEN SIZES (APPROX) | 42-50" | 50-55" | 55-60" | 60-65" | 65-79" |
