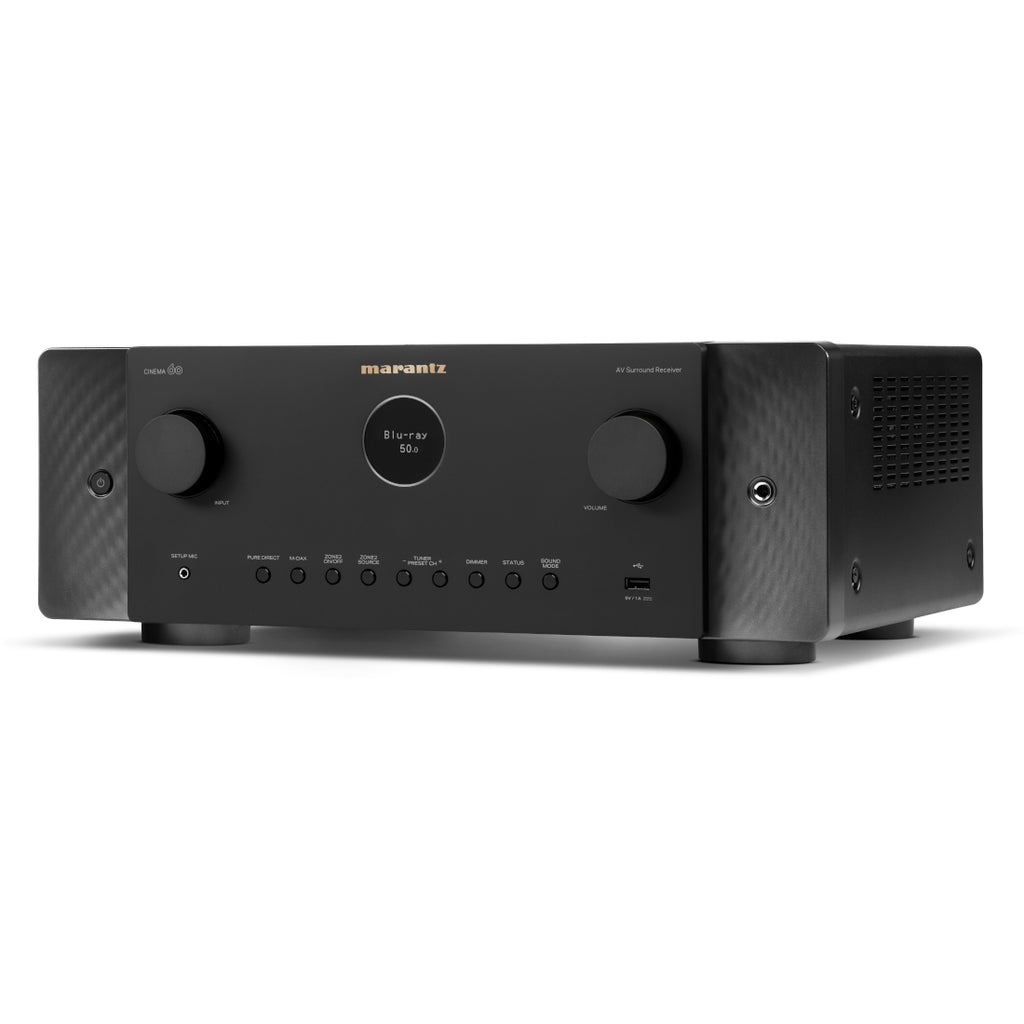

Marantz Cinema 60 Multi Channel AV Receiver

$2,600
By Marantz

Description

CINEMA 60

PREMIUM 7.2 CHANNEL | 100 WATTS PER CHANNEL AV RECEIVER

High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theater.

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Excellence Only Begins with Performance

Key Features:

  • Peerless Performance
    Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.
  • Technology Leader
    CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
  • Exquisite Design
    A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Believe in Quality

Performance

The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any
luxurious environment.

Customizability

Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.


Specifications:

POWER AMPLIFIER

Number of Powered Channels 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable

MULTICHANNEL SURROUND TECHNOLOGIES

DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels 7.2

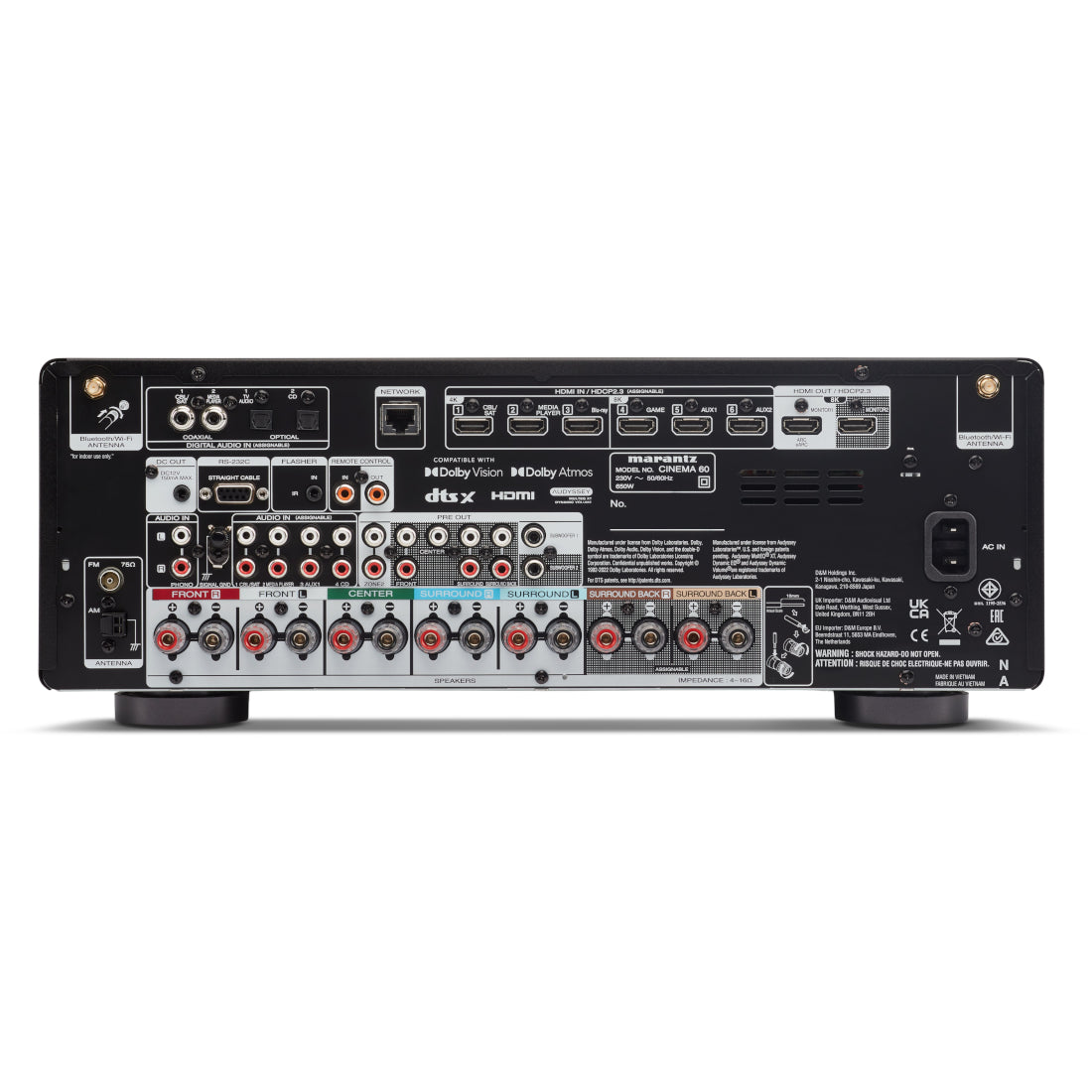

Inputs/Outputs

Composite In / Out 0/0
Component In / Out 0/0
HDMI In / Out 6 / 2
Multi-Room Video Out via HDMI 0/0
Analog In / Fixed Level Out 4 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 1 / 0
Multichannel Preamp Out 7.2
Subwoofer Out 2
7.1 multichannel input No
Number of Speaker Terminals 7
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio Yes / No / No
FM Tuner with RDS Yes
DAB+ Tuner No

HDMI

Total HDMI Inputs / No. Support 8K 6 / 3
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Analog to HDMI Video Conversion No
HDMI Upscaling 1080P/4K to 8K
Max resolution @ framerate
Audio Return Channel eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI No
Auto LipSync Yes

PERFORMANCE TECHNOLOGIES

Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer No

Acoustic / Room Correction

Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC No
Dirac Live Support No
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync No

MUSIC FILE SUPPORT

Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio 2.8 MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes

STREAMING SERVICES

HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming AirPlay2
Internet Radio TuneIn
Spotify* Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested Yes

NETWORK CONNECTIVITY

Ethernet Ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

SMART HOME INTEGRATION AND CONTROL

Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 1
HDMI Diagnostics Yes

Others

Front Display port hole OLED
Primary Display Size (diagonal in/mm)
Secondary Display Size (diagonal in/mm)
GUI Languages 9
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes

General

Available Colors Black/Silver-Gold
Metal Front Panel No
System Remote Control RC-049SR
Power Consumption in W 650
Power Consumption No-Sound (ECO on/off) in W 45 W / 75 W
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm
442 x 354 x 165
( 442 x 354 x 235 )
【 442 x 343 x 165 】
Weight in kg 10.9
What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
