Monitor Audio Creator Series C3L In-Ceiling Large Speaker
Description

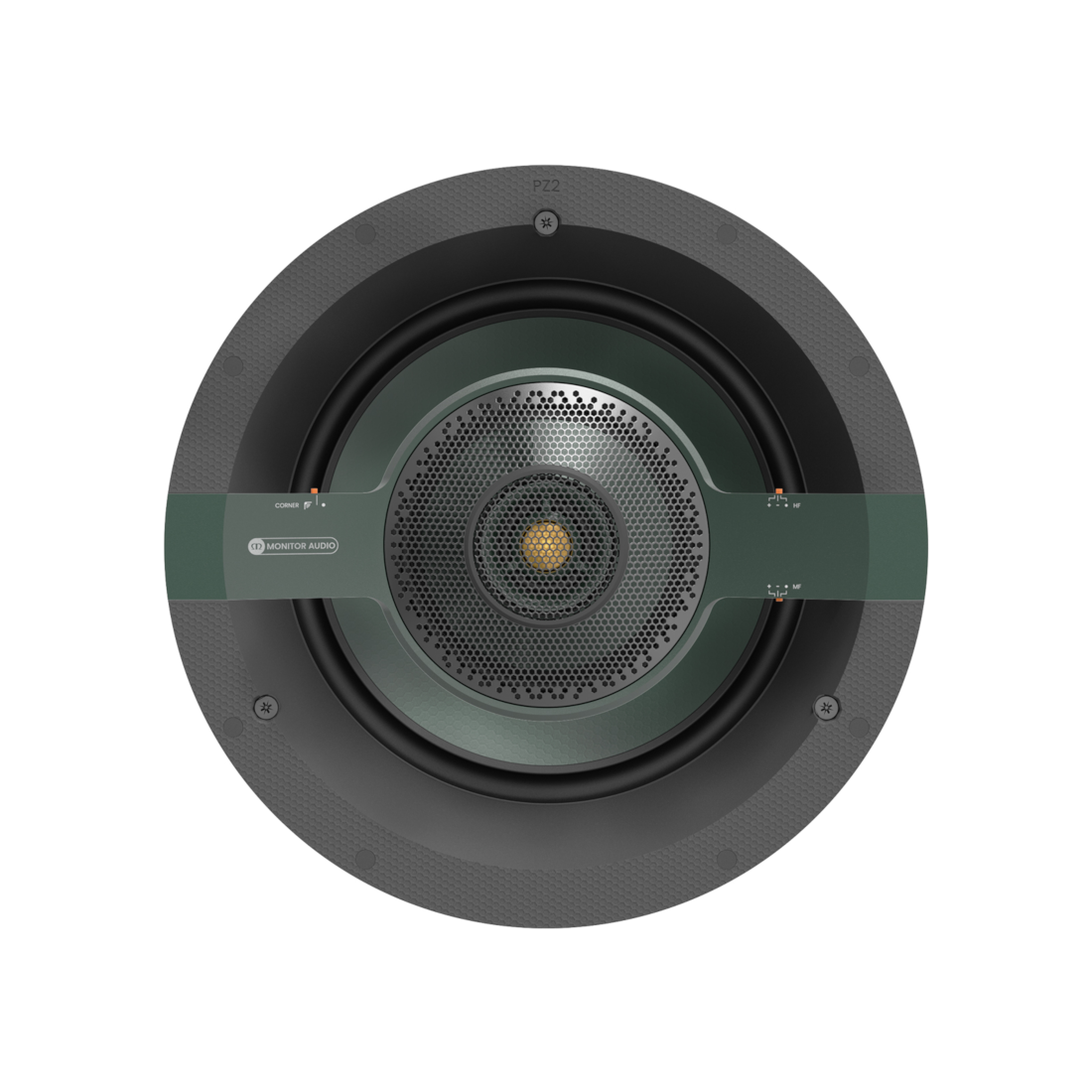

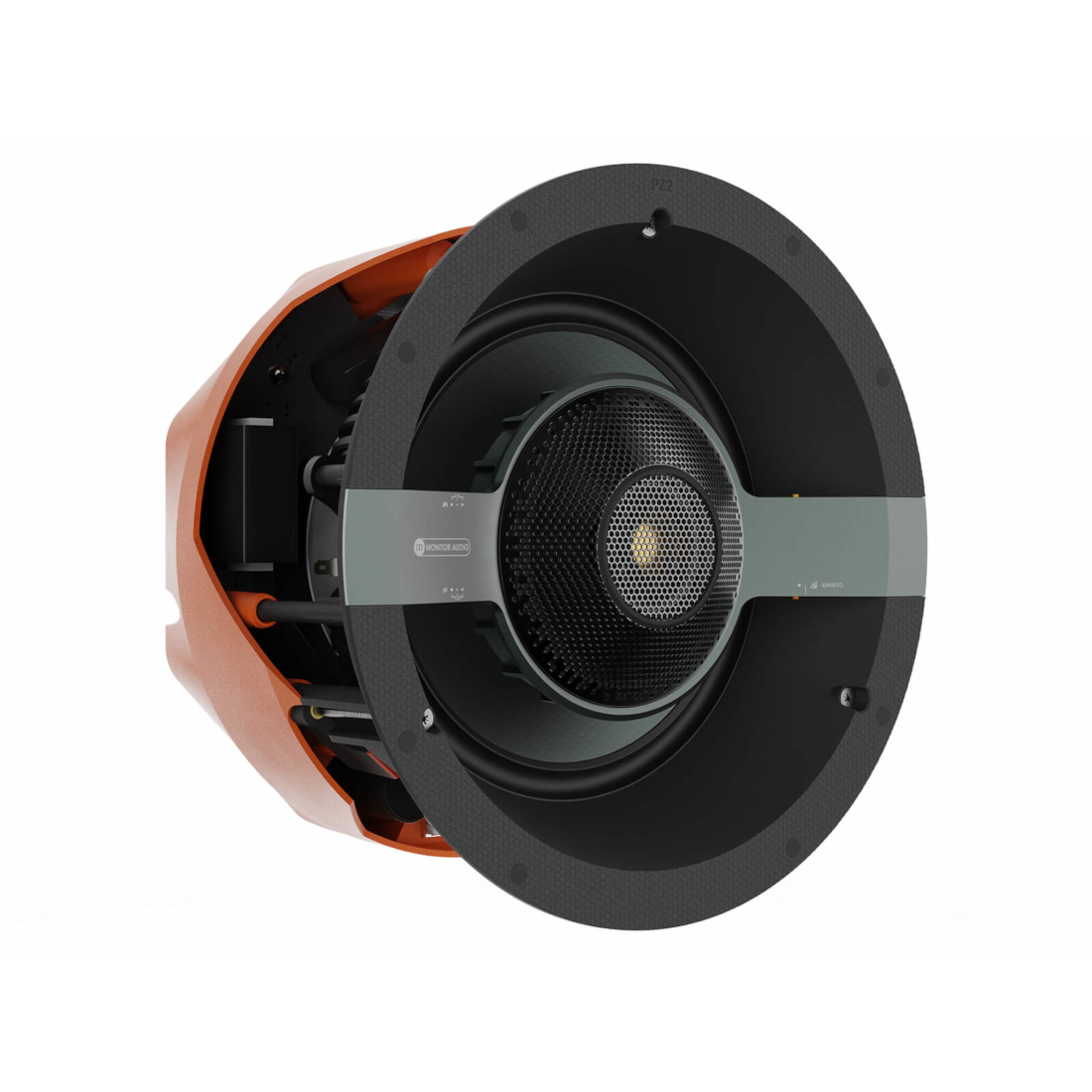

This large Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut out diameter of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features:
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II midrange driver
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II mid-range driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of this acoustic technology was developed. It has a cut out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

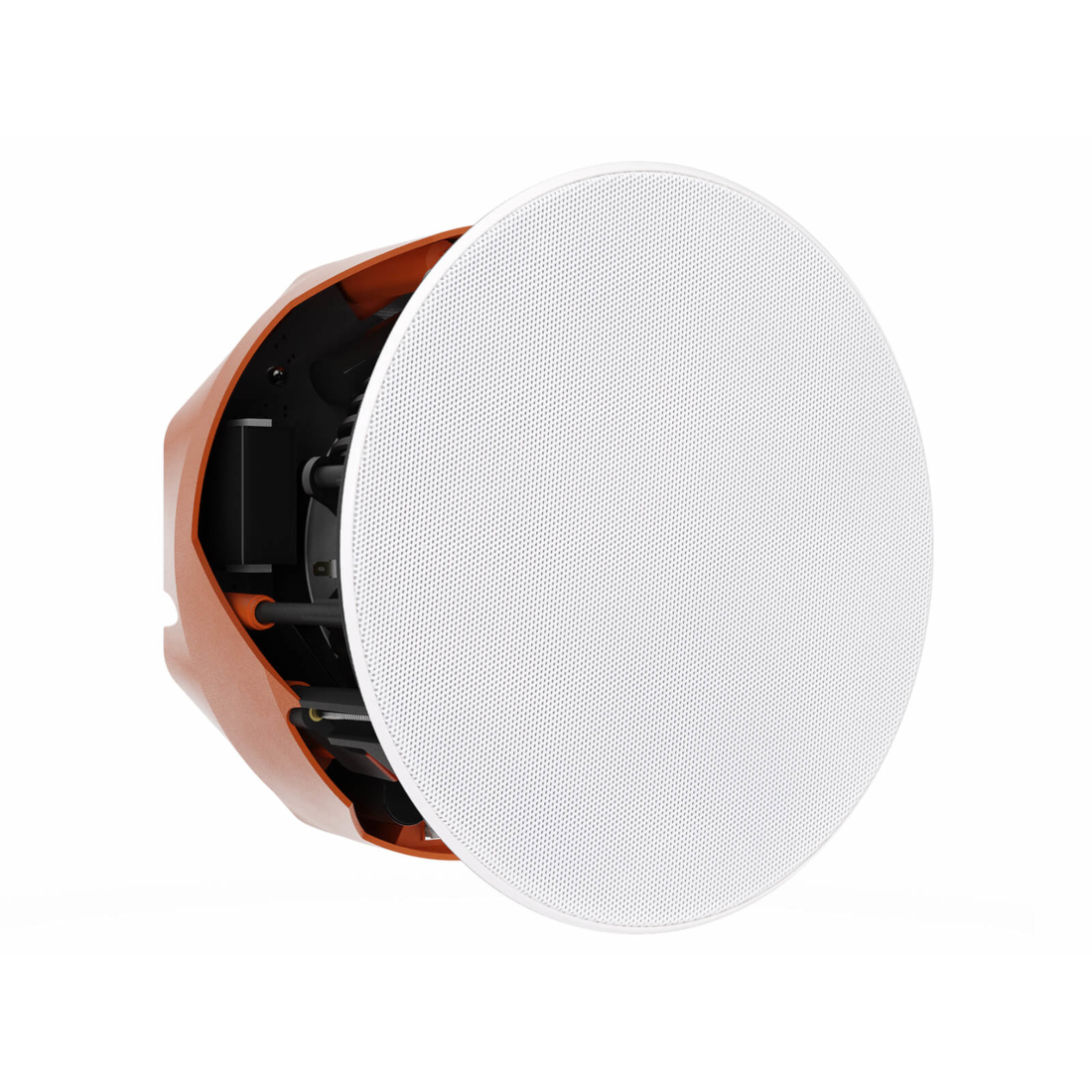

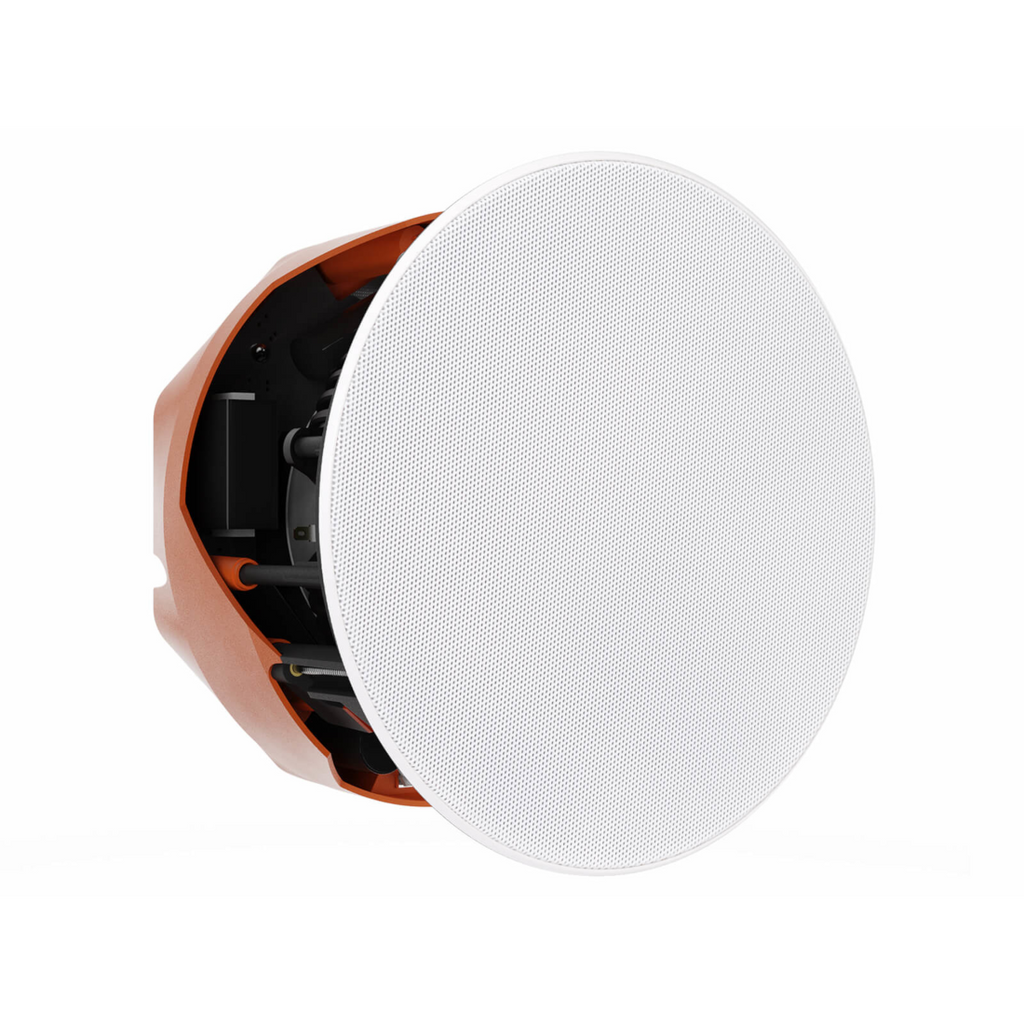

Optional square grille can be used with this model.
Specifications:
| Drive Units Complement | 1 x 9” RDT III bass driver, 1 x 4” IDC II midrange driver, 1 x 25mm IDC II tweeter |
| Nominal Impedance | 6 Ohms |
| Amplifier Requirement | 60 - 225 W |
| Continuous Power Handling | 150 W |
| Sensitivity (2.83v @ 1m) | 89 dB |
| Cut Out Size | 248 mm |
| Mounting Depth | 157 mm |
| Dimensions | inc. grille: Ø 278 x 161 mm (Ø 10 15/16 x 6 5/16”) |
| Weight | 5 kg (11 lb) |
