Onkyo A-9110 Integrated Amplifier
Description
Onkyo builds on the success of its A-9010 pre-main amp with the new A-9110 Integrated Stereo Amplifier, a component that refines an original amp design that’s won an excellent critical and commercial reputation for dynamic, musical sound. Lively dynamics, deep bass, and layered detail emerge from warm and expressive tuning sure to please European ears. WRAT delivers high-current power stability via large custom capacitors, while low-NFB amps capture the depth and spatiality of analog and hi-res recordings. Five RCA inputs including MM phono stage connect your sources while high-quality speaker-posts reveal Onkyo’s hi-fi heritage and careful attention to detail. The A-9110 invites you into each album, the hours passing comfortably in pure analog sound.
Specifications
HIGHLIGHTS
50 W + 50 W high-current amplification
WRAT (Wide Range Amplification Technology)
Direct Mode for source-authentic audio reproduction
Phase Matching Bass Boost
High-current EI transformer, large custom audio capacitors, and discrete output stage
MM phono input, 4 x RCA
New fine display for easy source selection
AMPLIFICATION FEATURES
WRAT (Wide Range Amplifier Technology)
Customized high-current EI transformer
Two large custom-fabricated audio-grade main capacitors
Optimum Gain Volume Circuitry for clear low-volume playback
Four-ohm speaker-driving capability
Phase Matching Bass Boost
Rigid anti-resonant 1.6 mm metal chassis
Direct Mode for source-authentic audio reproduction

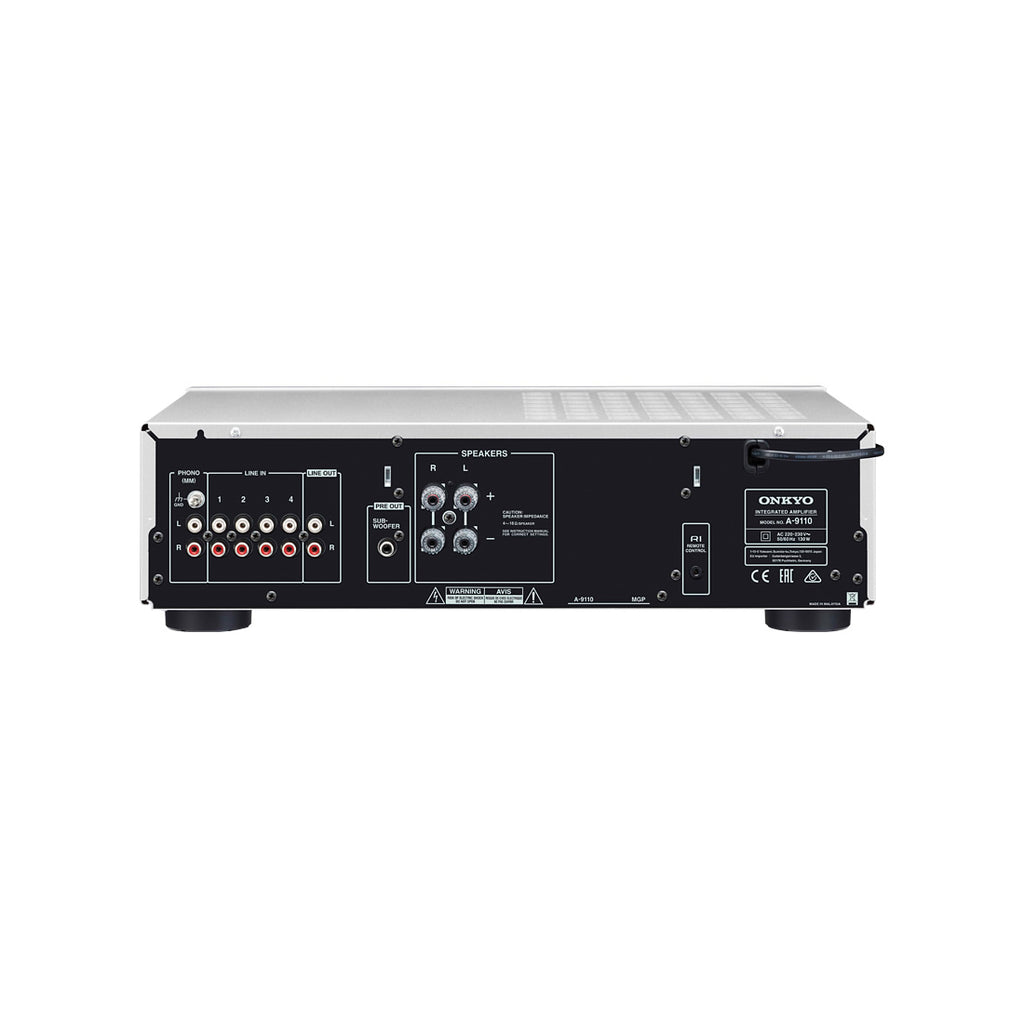

CONNECTION FEATURES
4 analog RCA inputs
1 phono input with discrete MM phono equalizer
1 analog RCA line-level output
Subwoofer pre-out
Non-magnetic speaker posts with clear knobs
6.35 mm headphone jack
RI (Remote Interactive) input
ADDITIONAL FEATURES
Fine display shows active input
Independent tone controls for bass and treble with balance control
Easy-to-use controls for smooth operation without a remote
RI (Remote Interactive) input enables connection of a supported component for integrated control with one remote controller
Auto Power Standby
Available in silver or black
GENERAL SPECIFICATIONS
Power output: 50 W + 50 W (4 ohms, 20 Hz–20 kHz, 0.9% THD, 2-ch driven, IEC)
Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Dimensions (W x H x D): 435 x 129 x 330 mm
Weight: 7.0 kg
