Ortofon Hi-Fi 10 Replacement Stylus

$98 $109
By Ortofon

Description

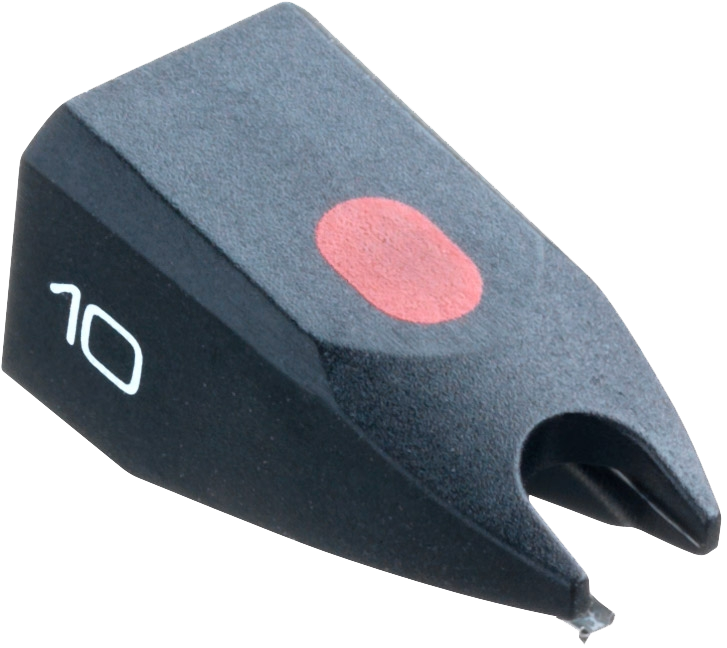

Ortofon Hi-Fi OM 10 Stylus

Replacement stylus for Ortofon 10 series cartridges

Moving Magnet Tipped Elliptical Stylus

The Ortofon OM10 Stylus is an optional replacement for your existing Ortofon OM cartridge. It features a Tipped Elliptical stylus profile.

You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.

We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.

Specifications:

Frequency range  20-24.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force* 70 µm
Compliance, dynamic, lateral  20 µm/mN
Stylus type: Elliptical
Stylus tip radius  r/R 8/18 µm
Tracking force range 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended 1.5 g (15 mN)
Tracking angle 20°
