Rotel RC-1572MKII Preamplifier
Description
Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier including multiple acoustic upgrades and refinements processing your favorite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.
As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.
Features:
- AKM premium 32-bit/768 kHz Digital to Analogue Converter
- iOS control app
- Moving magnet phono input for turntable connection
- Bluetooth with aptX
- Balanced XLR inputs and outputs
A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.
Analog, Digital, XLR, aptXTM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favorite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

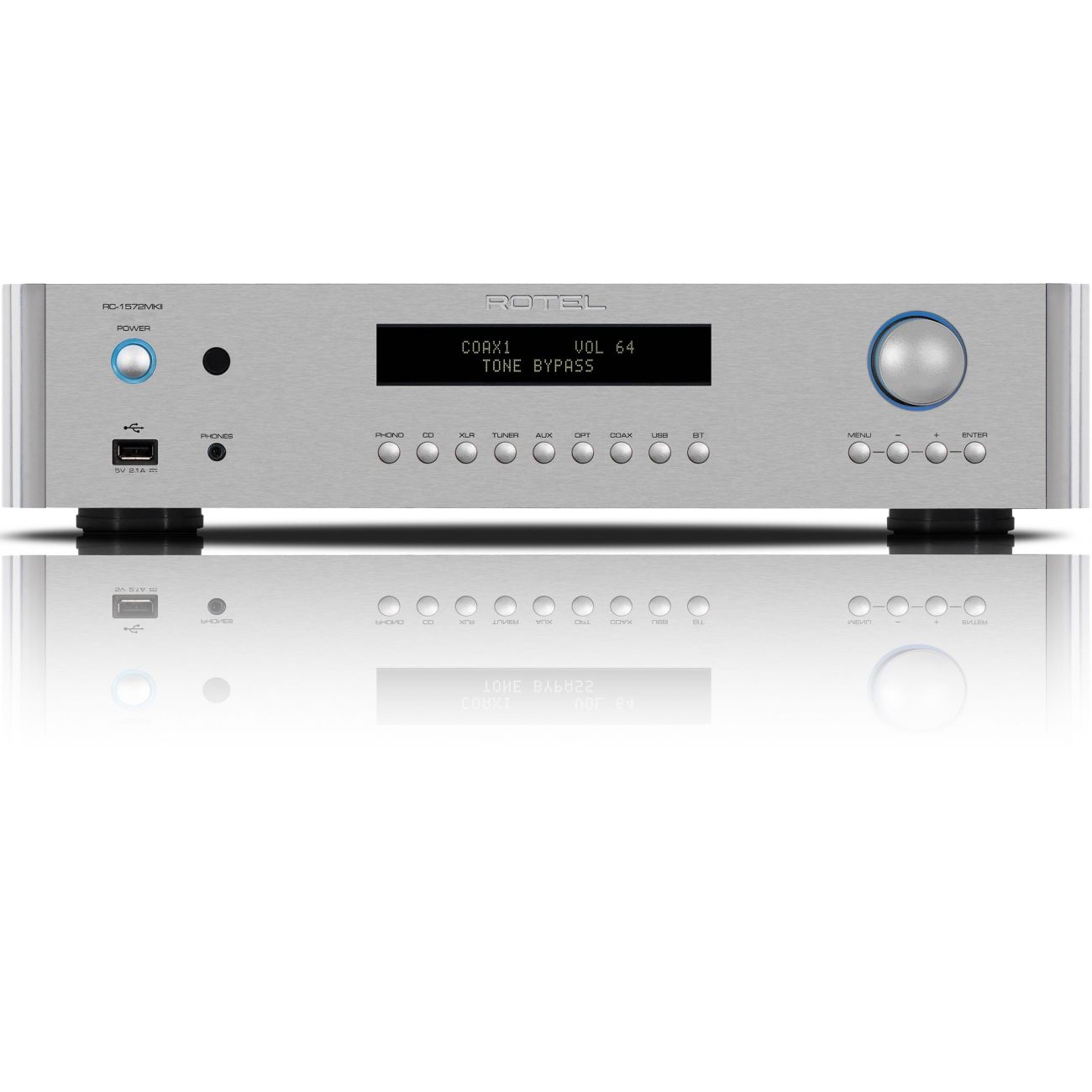

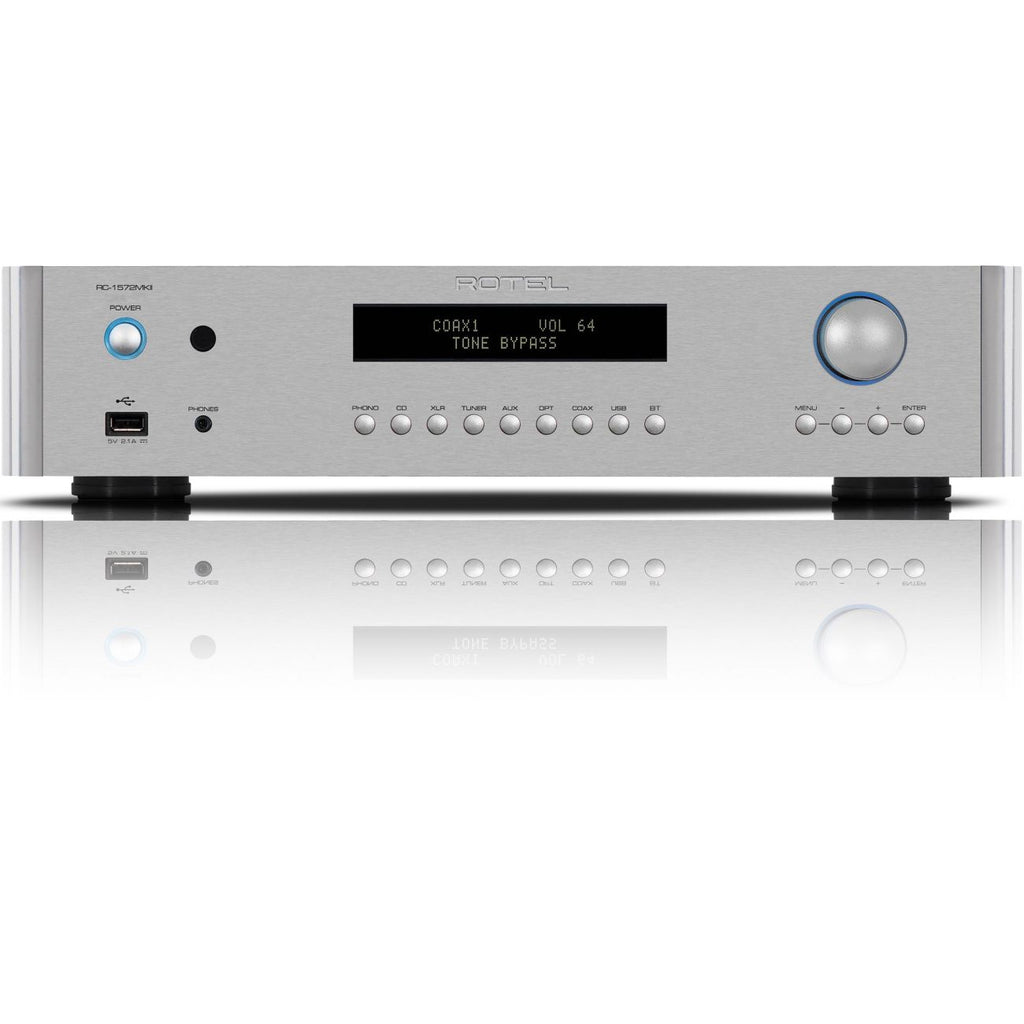

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimize customization settings.

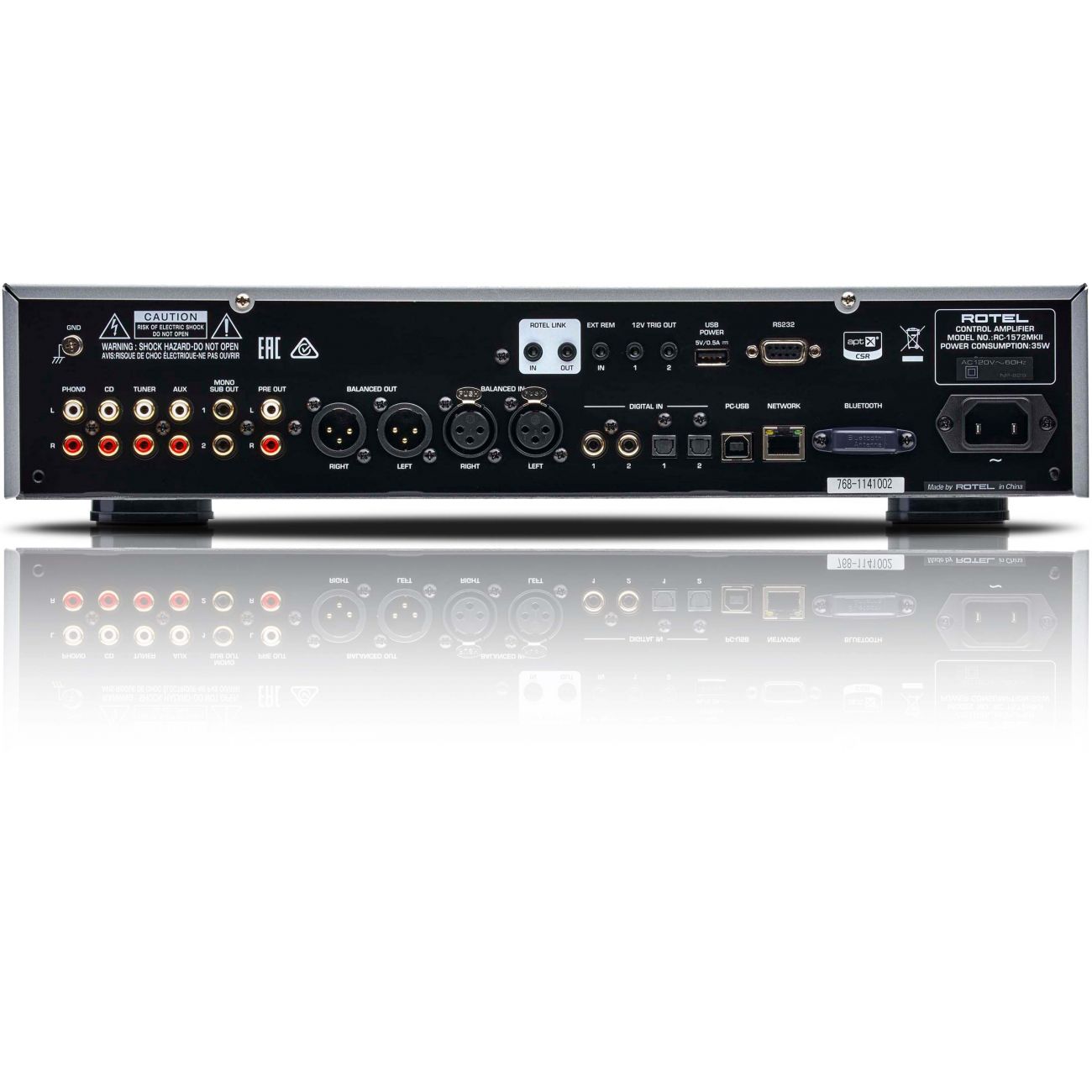

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.
Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.
Specifications:
| Total Harmonic Distortion (THD) | 20 Hz – 20 kHz <0.004% |
| Frequency Response | Line Level Inputs: 10 Hz - 100 kHz ±0.3 dB, Digital Inputs: 20 Hz - 20 kHz ±0.5 dB, Phono Input: 20 Hz - 20 kHz ±0.3 dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 110 dB, Digital Inputs: 100 dB, Phono Input: 80 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.004% |
| Input Sensitivity | Line Level Inputs (RCA): 200 mV, Line Level Inputs (XLR): 300 mV, Phono Input (MM): 3 mV |
| Input Impedance | Line Level Inputs (RCA): 100 kΩ, Line Level Inputs (XLR): 100 kΩ, Digital Inputs: 75 Ω, Phono Input (MM): 47 kΩ |
| Input Overload | Line Level Inputs: 4 V, Phono Input: 62 mV |
| Output Level | Unbalanced (RCA): 1 V, Balanced (XLR): 2 V |
| Tone Controls | ±10 dB at 100 Hz / 10 kHz |
| Coax/Optical Digital Input Signals | LPCM (Up to 24-bit/192 kHz) |
| PC-USB | USB Audio Class 1: Up to 24/96, USB Audio Class 2: Up to 32/384 (Driver Installation Required), DSD and DoP Support |
| Dimensions, Weight & Power | |
| Dimensions (W x H x D) | 431 x 99 x 338 mm (17" x 3.9" x 13.5") |
| Front Panel Height | 2U / 88.1 mm (3.5") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 35 W |
| Net Weight | 7.4 kg (16 lbs.) |
| BTU Rating | 65 BTU/h |
